The markings on your tire sidewall contain a mix of letters and numbers. You can use the sidewall codes and values to determine a wealth of information about your tire. These alphanumeric markings can instantly tell you about the tire type, construction, size, and other features. Knowing how to read the sidewall codes can assist with easily describing a tire in detail.

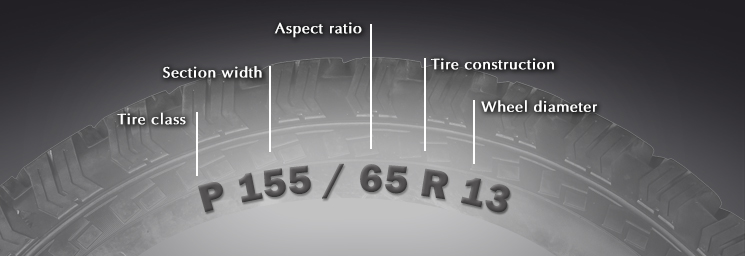

1. P-METRIC SIDEWALL CODE:
1.1 Tire Class:
- "P" designates a P-Metric passenger constructed tire built to US standards.
- "LT" designates a light truck tire. LT tires are not part of the P-Metric family, but they are also built to US standards.
- The absence of a letter indicates a passenger constructed tire built to European standards.
1.2 Section Width:
- The section width will be 3 digits
- Our example tire has a section width of 205 mm.
1.3 Aspect Ratio:
- Find the aspect ratio by looking for the two-digit number after the slash.
- Our example tire has an aspect ratio of 65, meaning that its sidewall height is 65% percent of its 205mm section width.
1.4 Tire Construction:
- “R” stands for radial construction, where the tire’s plies run at 90 degrees to the centerline of the tread.
- “D” stands for diagonal bias construction, where the plies are situated at angles lower than 90 degrees.
NOTE: The wheel diameter is the last figure in a P-Metric sidewall code. It indicates the diameter of the wheel of which it can be mounted on. Our example tire has a wheel diameter of 16, meaning that it will fit on a 16-inch wheel.
2. OTHER SIDEWALL MARKINGS:

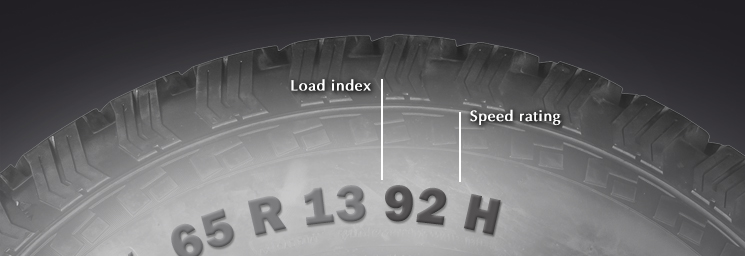

2.1 Load Index and Speed Ratings:

The load index is a number explicitly indicating how much weight your tire can carry at different inflations. You can find this number in the load index table, where it refers to your tire’s carrying capacity in pounds. Our example tire has a load range of 92, which corresponds to 1389 lbs. at 36 psi.
The speed rating is a letter indicating the maximum speed that a tire can safely reach and maintain, as determined by laboratory testing. Our example tire has an “H” speed rating, which means it can safely travel at speeds up to 130 mph.
2.2 US DOT and Safety Standard Markings:

The DOT designation indicates that the tire meets or exceeds the U.S. Department of Transportation's safety requirements for on-road use. Tires without this designation should not be legally driven on US public roads.
The plant code appears as the two letters after “DOT.” These characters identify the tire’s manufacturer and site of creation. After the plant code, you will find two characters that express the tire size in a code determined by the manufacturer.
The first three characters after the dash represent brand characteristics in a code also determined by the manufacturer. The plant code, tire size, and brand characteristics are intended for the manufacturer’s internal use.
After the brand characteristics, there are four numbers representing the tire’s date of creation. The first two numbers in this sequence tell you the tire’s manufactured week.
- The manufactured week identifies which week of the year the tire was made in.
- Our example tire lists 10 as its manufactured week, so it was produced in the 10th week of the year.
The Manufactured Year is represented by the last two of the four digits.
- The manufactured year identifies the year the tire was produced.
- Combine the manufacture week and year to determine exactly when the tire was made.
- Our example tire lists 16 as its manufactured year, so it was made during the 10th week of 2016.

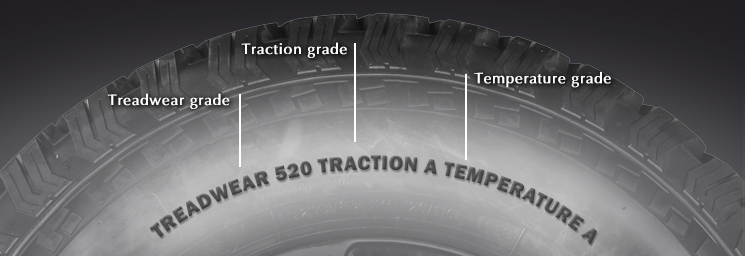

2.3 Tread wear, Traction, and Temperature Markings:

The
Tread wear grade appears first. It offers a relative score describing a tire’s ability to resist wear.
• Our example tire’s 520 tread wear rating places it in a numerical context along with others made by the same manufacturer.
The
Traction grade appears next. This ranking describes the tire’s ability to stop on straight, wet surfaces under controlled conditions.
- Traction grades are given on a comparative scale: AA, A, B, and C. The highest is AA; the lowest is C.
- Our example tire has an “A” traction grade, meaning that it has very good but not superior stopping power on wet surfaces.
The
Temperature grade is the sidewall’s last UTQG marking. It describes the tire’s ability to dissipate heat and resist temperature buildup.
- Temperature grades are also given on a comparative scale: A, B, and C.
- Our example tire has the highest temperature grade, an “A.”
2.4 Maximum Load Capacity and Inflation Pressure:
The
maximum load capacity, like the load index, identifies your tire’s load carrying capacity when inflated to its maximum air pressure.
The
maximum air pressure represents the tire’s maximum operating inflation pressure.
- Standard and extra load tires meet the maximum load at 36 and 42 PSI, respectively, and maintain that load up to the tire’s maximum operating inflation pressure.
- The example tire has a maximum pressure of 44 psi.
- Remember that these maximum load and air pressure limits apply to the tire and not your vehicle. Always check your owner’s manual for your vehicle’s cold inflation pressure recommendations.
