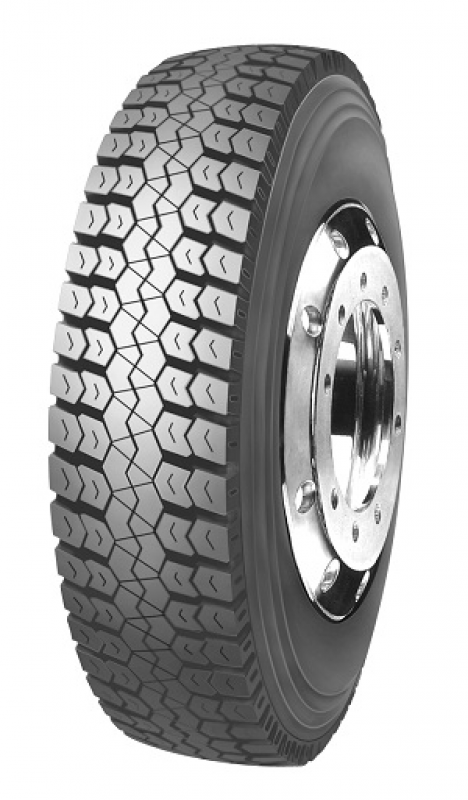

Model: CM954
Class: Regional
Highlights:
- Rim size: 20-22
Description:
| Size | Ply Rate | Type | Pattern | Tread Depth 32nd |
Service Index | Standard Rim | Section Width Inch |
Overall Diameter Inch |
Max Load (S/D) lbs |
Cold Inflation Pressure PSI |
|---|---|---|---|---|---|---|---|---|---|---|
| 10.00R20 | 16 | N/A | CM954 | 20 | 146/143K | 7.5 | 11 | 41 | 6610/6005 | 120 |
| 11.00R20 | 18 | N/A | CM954 | 19 | 152/149K | 8 | 12 | 43 | 7825/7165 | 135 |
| 11R22.5 | 14 | N/A | CM954 | 20 | 144/142L | 8.25 | 11 | 41 | 6175/5840 | 105 |
| 11R22.5 | 16 | N/A | CM954 | 20 | 148/145M | 8.25 | 11 | 41 | 6940/6390 | 123 |
