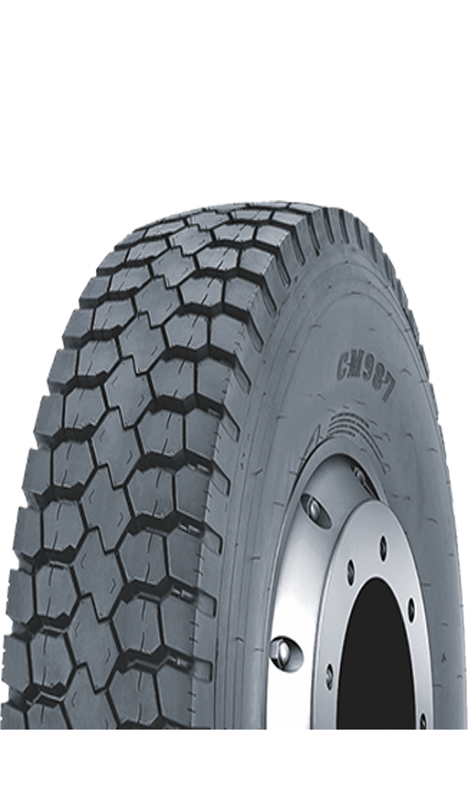

West Lake Tires CM987

Search Results

Highlights:

Description:
- Non-directional tread design for easy operating. - Open lug design helps provide traction in wet or snowy conditions.

COMPLETE SIZE	Pattern	Tread Depth	Service Index	Standard Rim	Section Width	Overall Diameter	Max Load (S/D)	Cold Inflation Pressure
COMPLETE SIZE	Pattern	32nd	Service Index	Standard Rim	Inch	Inch	lbs	PSI
8.25R16-16 TL	CM987	17.6	128/124L	6.50H	9.25	34.06	3969 /3529	111
9.00R16-14 TL	CM987	18.9	131/126L	6.50H	10.04	35.43	4300 /3750	97
9.00R20-16 TL	CM987	20.2	144/142K	7	10.20	40.12	6175 /5840	130
10.00R20-16 TL	CM987	21.4	146/143K	7.5	10.94	41.50	6610 /6005	120
10.00R20-18 TL	CM987	21.4	149/146J	7.5	10.94	41.50	7160 /6610	135
11.00R20-18 TL	CM987	22.7	152/149K	8	11.54	42.72	7825 /7165	135
12.00R20-18 TL	CM987	23.9	154/151K	8.5	12.40	44.29	8270 /7610	120
12.00R20-20 TL	CM987	23.9	156/153J	8.5	12.40	44.29	8820 /8050	131
11R22.5-14 TL	CM987	26.0	144/142L	8.25	10.98	41.93	6175 /5840	105
11R22.5-16 TL	CM987	26.0	148/145L	8.25	10.98	41.93	6940/6390	123
11R22.5-18 TL	CM987	26.0	149/146L	8.25	10.98	41.50	7160 /6610	135
12R22.5-18 TL	CM987	22.7	152/149L	9	11.81	42.72	7830 /7160	135
11R24.5-14 TL	CM987	26.0	146/143L	8.25	10.98	43.94	6610 /6005	105
11R24.5-16 TL	CM987	26.0	149/146L	8.25	10.98	43.94	7160/6610	120
