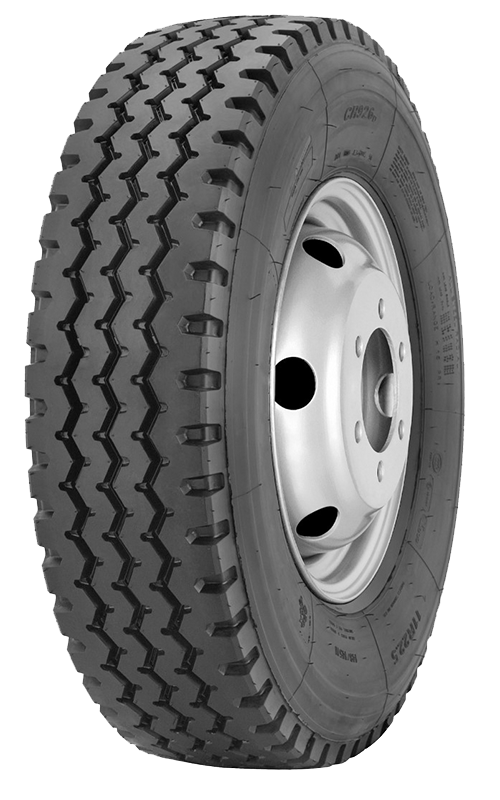

West Lake Tires CR926

Search Results

Model: CR926

Class:

Highlights:

Mixed Service

Description:
- 3 circumferential grooves ensures good directional stability, even wear and smooth ride.
- Heavy siping provides good braking stability and high lateral traction on wet and dry surface.
- Improved tread compound helps resist tears and ensure good mileage in on and off road use.
- Sidewall reinforcing ribs protects against impacts and scuffing.

COMPLETE SIZE	Pattern	Tread Depth	Service Index	Standard Rim	Section Width	Overall Diameter	Max Load (S/D)	Cold Inflation Pressure
COMPLETE SIZE	Pattern	32nd	Service Index	Standard Rim	Inch	Inch	lbs	PSI
6.50R16-12	CR926	12	110/105L	5.50F	7.28	29.53	2335/2040	97
7.00R16-14	CR926	13.9	118/114M	5.50F	7.87	30.51	2910/2600	112
7.50R16-14	CR926	15.1	122/118L	6.00G	8.46	31.69	3305/2910	112
8.25R16-14	CR926	17.6	128/126L	6.50H	9.25	33.66	3970/3750	97
8.25R16-16	CR926	17.6	128/124L	6.50H	9.25	33.66	3970/3525	112
7.50R20-14 TT	CR926	17.6	130/128L	6	8.46	36.81	4190/3970	120
8.25R20-14 TT	CR926	18.9	139/137K	6.5	9.29	38.34	5360/5070	135
8.25R20-16 TT	CR926	18.9	139/137K	6.5	9.29	38.35	5360/5070	135
9.00R20-14 TT	CR926	18.9	141/139K	7	10.20	40.12	5675/5355	115
9.00R20-16	CR926	19.6	144/142K	7	10.20	40.12	6175/5840	130
10.00R20-16 TL	CR926	20.2	146/143K	7.5	10.94	41.50	6610/6005	120
10.00R20-18 TT	CR926	20.2	149/146J	7.5	10.94	41.50	7160/6610	135
11.00R20-18 TT	CR926	20.2	152/149K	8	11.54	42.72	7825/7165	135
12.00R20-18 TL	CR926	22.1	154/151K	8.5	12.40	44.29	8270/7610	120
12.00R20-20 TL	CR926	22.1	156/153J	8.5	12.40	44.29	8820/8050	131
12.00R24-20 TL	CR926	20.2	160/157K	8.5	12.40	48.27	9920/9090	131
12R22.5-18 TL	CR926	20.2	152/149L	9	11.81	42.72	7830/7160	135
13R22.5-18 TL	CR926	20.2	156/151K	9.75	12.60	44.25	8820/7610	128
