West Lake Tires CB919

Search Results

Model: CB919

Class:

Highlights:

Mixed Service

Description:

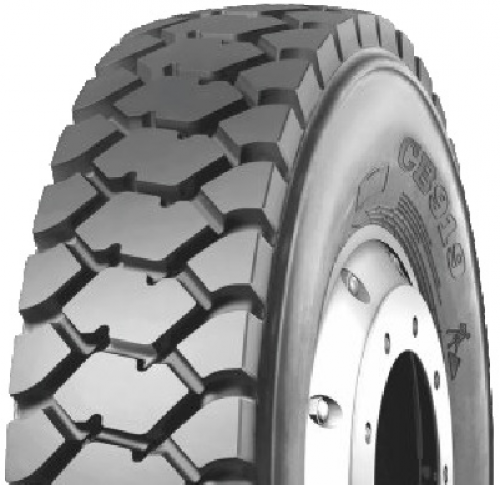

- Aggressive lug design with large block at tread center designed for mining, rock and quarry operations.
- Wide tread and special tread compounds resist chipping, chunking, and tearing.
- Stone rejector platform prevents trapped stones from punching deeper and piecing belt.

COMPLETE SIZE	Pattern	Tread Depth	Service Index	Standard Rim	Section Width	Overall Diameter	Max Load (S/D)	Cold Inflation Pressure
COMPLETE SIZE	Pattern	32nd	Service Index	Standard Rim	Inch	Inch	lbs	PSI
10.00R20-16	CB919	29.7	146/143F	7.5	10.94	41.93	6610/6005	120
10.00R20-18	CB919	29.7	149/146F	7.5	10.94	41.93	7160/6610	135
11.00R20-18	CB919	32.2	152/149F	8.0	11.54	43.11	7825/7165	135
12.00R20-18	CB919	32.2	154/151F	8.5	12.40	44.72	8270/7610	120
12.00R20-22	CB919	32.2	158/155C	8.5	12.40	44.72	9370/8540	141
12.00R24-20	CB919	40.3	160/157C	8.5	12.40	48.74	9920/9090	131
11R22.5-14 TL	CB919	29	144/142G	8.3	10.98	41.93	6175/5840	105
11R22.5-16 TL	CB919	29	148/145J	8.3	10.98	41.93	6940/6390	123
12R22.5-18 TL	CB919	29.7	152/149F	9.0	11.81	43.15	7830/7160	135
13R22.5-18 TL	CB919	30.2	156/151F	9.8	12.60	44.72	8820/7610	128
295/80R22.5-16 TL	CB919	26.5	150/147K	9.0	11.73	41.34	7390/6780	120
295/80R22.5-18 TL	CB919	26.5	152/149J	9.0	11.73	41.34	7830/7160	131
