West Lake Tires AD713

Search Results

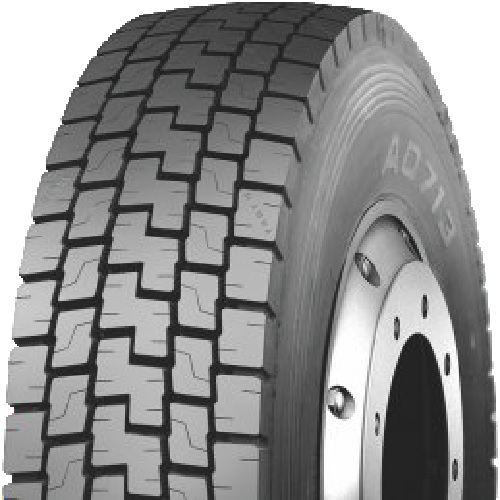

Model: AD713

Class:

Highlights:

Long Haul

Description:
- Ultra deep tread with robust tread blocks features excellent wet traction and longer tire life.
- Drive axle applicable providing lateral stability and multiple retreads.
- Latest carcass technology guarantees superior footprint and enhances damage resistance.

COMPLETE SIZE	Pattern	Tread Depth	Service Index	Standard Rim	Section Width	Overall Diameter	Max Load (S/D)	Cold Inflation Pressure
COMPLETE SIZE	Pattern	32nd	Service Index	Standard Rim	Inch	Inch	lbs	PSI
11R22.5-14 TL	AD713	28.5	144/142 L	8.25	10.98	41.93	6175/5840	105
11R22.5-16 TL	AD713	28.5	148/145L	8.25	10.98	41.93	6940/6390	123
275/70R22.5-16 TL	AD713	23.4	148/145L	8.25	10.87	37.72	6940/6395	130
295/80R22.5-16 TL	AD713	25.2	150/147M	9.00	11.73	41.34	7390/6780	120
295/80R22.5-18 TL	AD713	25.2	152/149M	9.00	11.73	41.34	7830/7160	131
315/80R22.5-18 TL	AD713	28.4	154/151M(156/150L)	9.00	12.28	42.60	8270/7610	120
315/80R22.5-20 TL	AD713	28.4	157/154K	9.00	12.28	42.36	9090/8270	130
