West Lake Tires

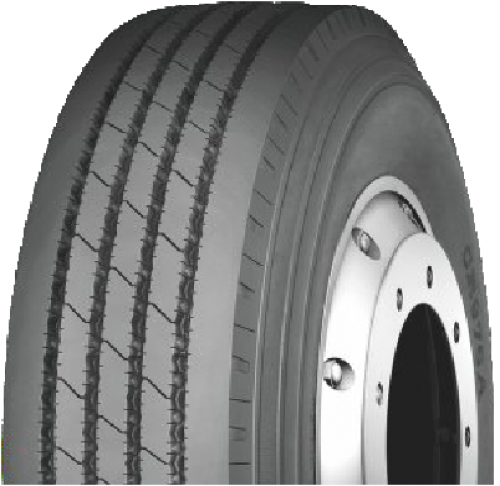

Model: CR976A

Class: Long Haul

Highlights:

  • Excellent  steering performance
  • Superior abrasion Resistance

Description:
- Five ribs with four wide, straight grooves for precise handling and outstanding traction.
- Stone rejector platforms prevent stones from lodging in grooves and drilling into belts.
- Shallower tread depth helps to resist tread squirm and irregular wear forces for exceptionally long mileage.



COMPLETE SIZE Pattern Tread Depth Service Index Standard Rim Section Width Overall Diameter Max Load (S/D) Cold Inflation Pressure
32nd Inch  Inch  lbs  PSI
385/65R22.5-18 TL CR976A 19.6 158L(160K) 11.75 15.31 42.20 9370 125
385/65R22.5-20 TL CR976A 19.6 160K(158L) 11.75 15.31 42.20 9920 130
425/65R22.5-20 TL CR976A 18.9 165K 12.25 16.93 44.25 11340 120
445/65R22.5-20 TL CR976A 18.9 169K 13 17.48 45.28 12775 130
9.00R20-16 CR976A 18.3 144/142K 7 10.20 40.12 6175/5840 130
10.00R20-16 CR976A 18.9 146/143K 7.5 10.94 41.50 6610/6005 120
10.00R20-18 CR976A 18.9 149/146J 7.5 10.94 41.50 7160/6610 135
11.00R20-18 TT CR976A 19.6 152/149K 8 11.54 42.72 7825/7165 135
12.00R20-18 CR976A 21.4 154/151K 8.5 12.40 44.29 8270/7610 120
12.00R20-20 CR976A 21.4 156/153J 8.5 12.40 44.29 8820/8050 131
215/75R17.5-16 TL CR976A 15.8 135/133J 6 8.31 30.20 4805/4540 123
225/70R19.5-14 TL CR976A 16.4 128/126M 6.75 8.90 31.93 3970/3750 110
245/70R19.5-14 TL CR976A 16.4 133/131M 7.5 9.76 33.03 4540/4300 110
245/70R19.5-16 TL CR976A 16.4 136/134M 7.5 9.76 33.03 4940/4675 120
265/70R19.5-16 TL CR976A 17.6 140/138M 7.5 10.31 34.13 5510/5200 112
265/70R19.5-18 TL CR976A 17.6 143/141J 7.5 10.31 34.13 6005/5675 123
11R22.5-14 TL CR976A 19.6 144/142M 8.25 10.98 41.50 6175/5840 105
11R22.5-16 TL CR976A 19.6 148/145M 8.25 10.98 41.50 6940/6390 123
11R22.5-18 TL CR976A 19.6 149/146L 8.25 10.98 41.50 7160/6610 135
12R22.5-18 TL CR976A 19.6 152/149L 9 11.81 42.72 7830/7160 135
255/70R22.5-16 TL CR976A 18.3 140/137M 7.5 10.04 36.61 5510/5070 120
275/70R22.5-16 TL CR976A 17.6 148/145M 8.25 10.87 37.72 6940/6395 130
275/80R22.5-16 TL CR976A 17.6 149/146M 8.25 10.87 39.84 7165/6610 123
295/80R22.5-16 TL CR976A 18.9 150/147M 9 11.73 41.10 7390/6780 120
295/80R22.5-18 TL CR976A 18.9 152/149M 9 11.73 41.10 7830/7160 131
315/80R22.5-18 TL CR976A 20.2 154/151M(156/150L) 9 12.28 42.36 8270/7610 120
315/80R22.5-20 TL CR976A 20.2 157/154K 9 12.28 42.36 9090/8270 130
