West Lake Tires

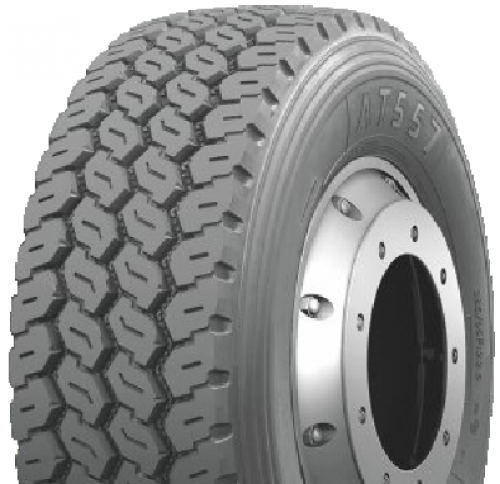

Model: AT557

Class: Mixed Services

Highlights:

  • Mixed Services

Description:
- Aggressive multi-service, all position tread pattern promises excellent traction in ON/OFF road service. - Outstanding self-cleaning tread design ensures long-life service in ON/OFF road conditions. - Robust tread blocks and rugged casing allows for heavy loads and resist casing penetration and damage.



COMPLETE SIZE Pattern Tread Depth Service Index Standard Rim Section Width Overall Diameter Max Load (S/D) Cold Inflation Pressure
32nd Inch  Inch  lbs  PSI
385/65R22.5-18 TL AT557 22.7 158L(160K) 11.75 15.31 42.20 9370 125
385/65R22.5-20 TL AT557 22.7 160K(158L) 11.75 15.31 42.20 9920 130
425/65R22.5-20 TL AT557 22.7 165K 12.25 16.93 44.25 11340 120
445/65R22.5-20 TL AT557 22.7 169K 13 17.48 45.28 12775 130
265/70R19.5-18 TL AT557 20.9 143/141J 7.5 10.31 34.13 6005/5675 123
12R22.5-18 TL AT557 22.1 152/149L 9 11.81 42.72 7830/7160 135
255/70R22.5-16 TL AT557 22.1 140/137L 7.5 10.04 36.85 5510/5070 120
275/70R22.5-16 TL AT557 22.7 148/145L 8.25 10.87 37.72 6940/6395 130
315/80R22.5-18 TL AT557 22.1 154/151M(156/153L) 9 12.28 42.36 8270/7610 120
315/80R22.5-20 TL AT557 22.1 157/154K 9 12.28 42.36 9090/8270 130
315/80R22.5-22 TL AT557 22.1 164/158K 9 12.28 42.36 11000/9370 138
