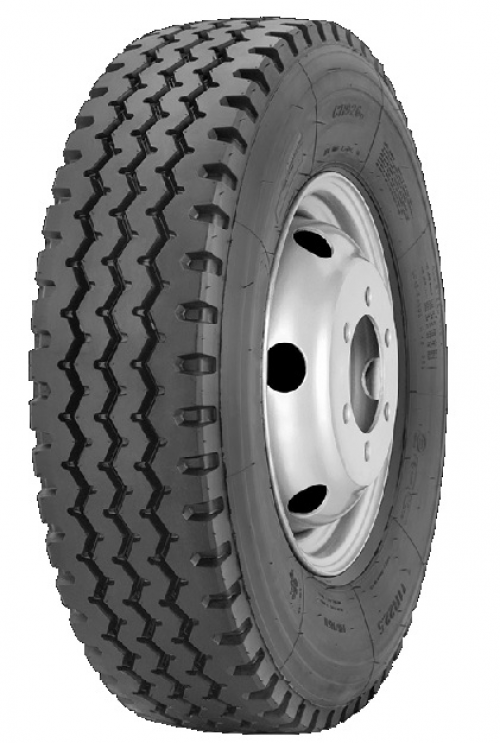

West Lake Tires CR926D

Search Results

Model: CR926D

Class: Mixed Services

Highlights:

Mixed Service

Description:
- 3 circumferential grooves ensures good directional stability, even wear and smooth ride.
- Heavy siping provides good braking stability and high lateral traction on wet and dry surface.
- Improved tread compound helps resist tears and ensure good mileage in on and off road use.
- Sidewall reinforcing ribs protects against impacts and scuffing.

COMPLETE SIZE	Pattern	Tread Depth	Service Index	Standard Rim	Section Width	Overall Diameter	Max Load (S/D)	Cold Inflation Pressure
COMPLETE SIZE	Pattern	32nd	Service Index	Standard Rim	Inch	Inch	lbs	PSI
11R22.5-14 TL	CR926D	21.2	144/142M	8.25	10.98	41.50	6175/5840	105
11R22.5-16 TL	CR926D	21.2	148/145M	8.25	10.98	41.50	6940/6390	123
11R22.5-18 TL	CR926D	21.2	149/146L	8.25	10.98	41.50	7160/6610	135
255/70R22.5-16 TL	CR926D	17.9	140/137L	7.5	10.04	36.61	5510/5070	120
295/80R22.5-16 TL	CR926D	20.2	150/147M	9	11.73	41.10	7390/6780	120
295/80R22.5-18 TL	CR926D	20.2	152/149L	9	11.73	41.10	7830/7160	131
11R24.5-14 TL	CR926D	21.2	146/143L	8.25	10.98	43.46	6610/6005	105
11R24.5-16 TL	CR926D	21.2	149/146L	8.25	10.98	43.46	7160/6610	120
12R24.5-18 TL	CR926D	21.4	154/151L	9	11.81	45.16	8270/7610	135
